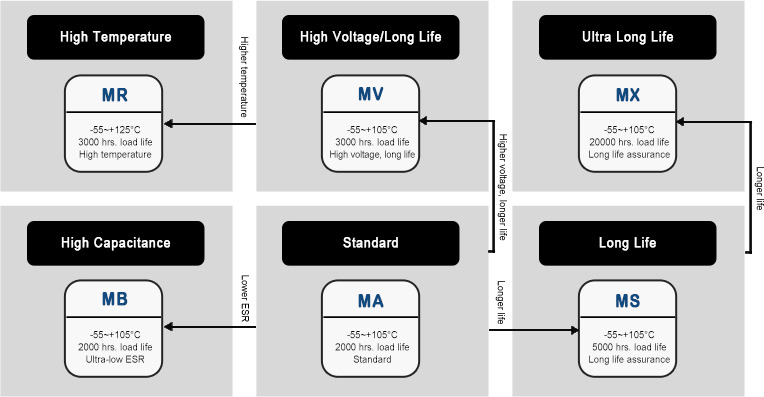

Type | Series | Features | ![]() |
![]() |
![]() |
![]() |
Operating Temperature Range (°C) |
Rate Voltage Range (V.D.C.) |
Capacitance Range (µF) |
Load Life (Hours) |
|
---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

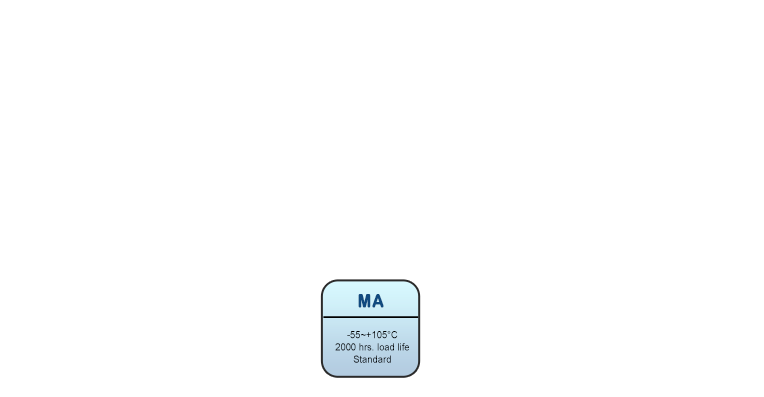

Standard | MA | Standard, Low ESR | ![]() |
![]() |
-55~+105 | 2.5~25 | 3.3~1500 | 2000 | ||

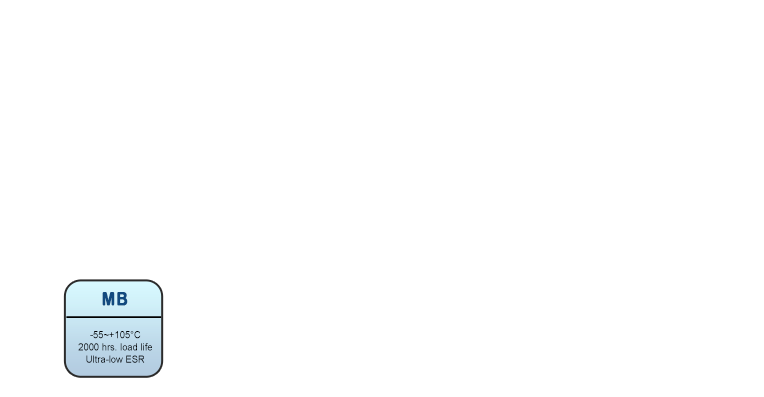

High Capacitance | MB | High Capacitance, Ultra-low ESR | ![]() |
-55~+105 | 2.5~16 | 120~1000 | 2000 | ||||

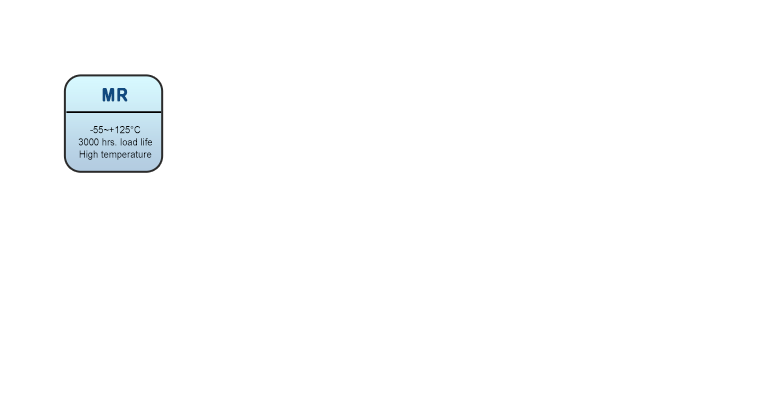

High Temperature | MR | 125°C High Temperature, High Reliability | ![]() |
![]() |
![]() |
-55~+125 | 16~50 | 5.6~390 | 1500-3000 | ||

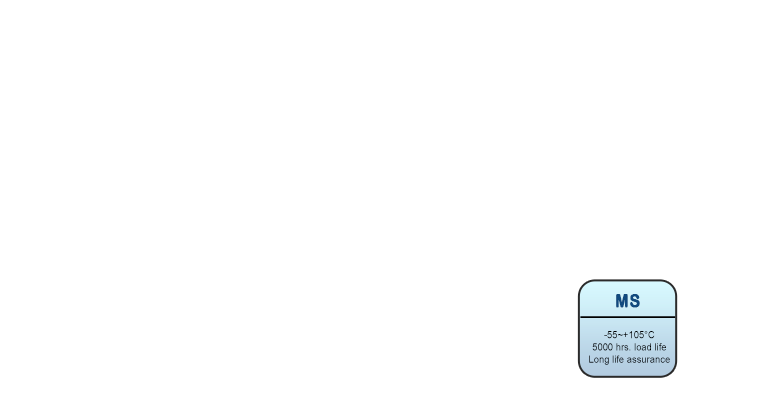

Long Life | MS | Long Life Assurance | ![]() |
![]() |
-55~+105 | 4~16 | 22~560 | 5000 | |||

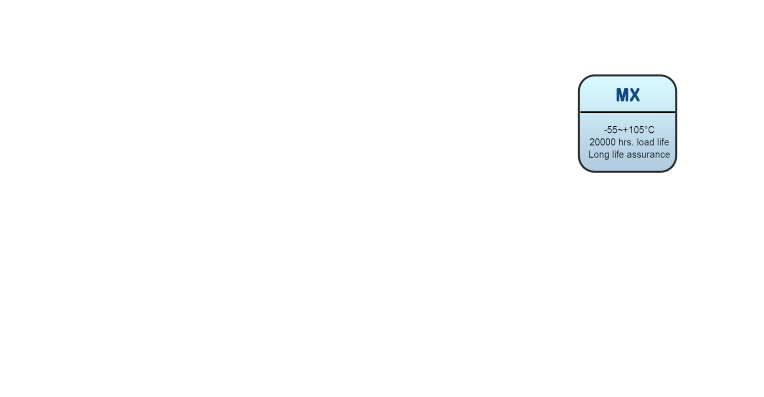

MX | Ultra Long Life Assurance | ![]() |
![]() |
-55~+105 | 4~16 | 22~560 | 20000 | ||||

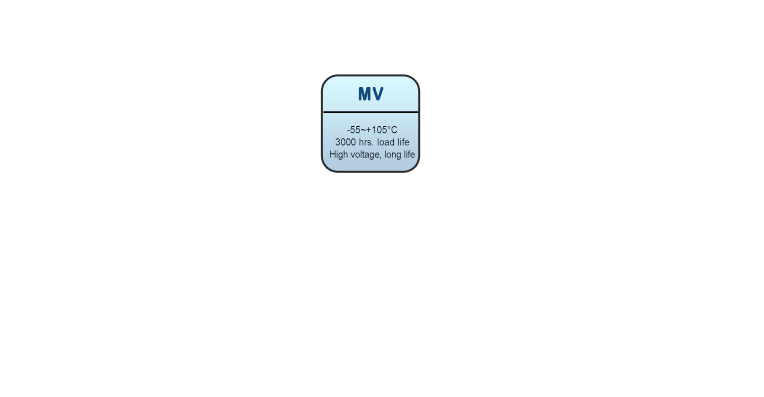

High Voltage / Long Life | MV | High Voltage, Long Life Assurance | ![]() |
![]() |
-55~+105 | 16~125 | 5.6~680 | 3000 |
